HIP-HOPS-LLM¶

Hierarchical imprecise reliability assessment and failure propagation for LLM-based agentic systems.

Give it a LangGraph application and observed benchmark outcomes. Get back synthesised fault trees, minimal cut sets, an FMEA, and a Bayesian network whose top-event probability is an interval derived from measurement rather than a number derived from judgement.

Quickstart Explore the concepts API reference

From system design to safety analysis¶

Connect a hierarchical system design to its failure behaviour and a Bayesian network. Analyse how failures in AI agents and non-AI components propagate to system-level hazards, then use observed outcomes and an operational profile to calibrate the probabilities.

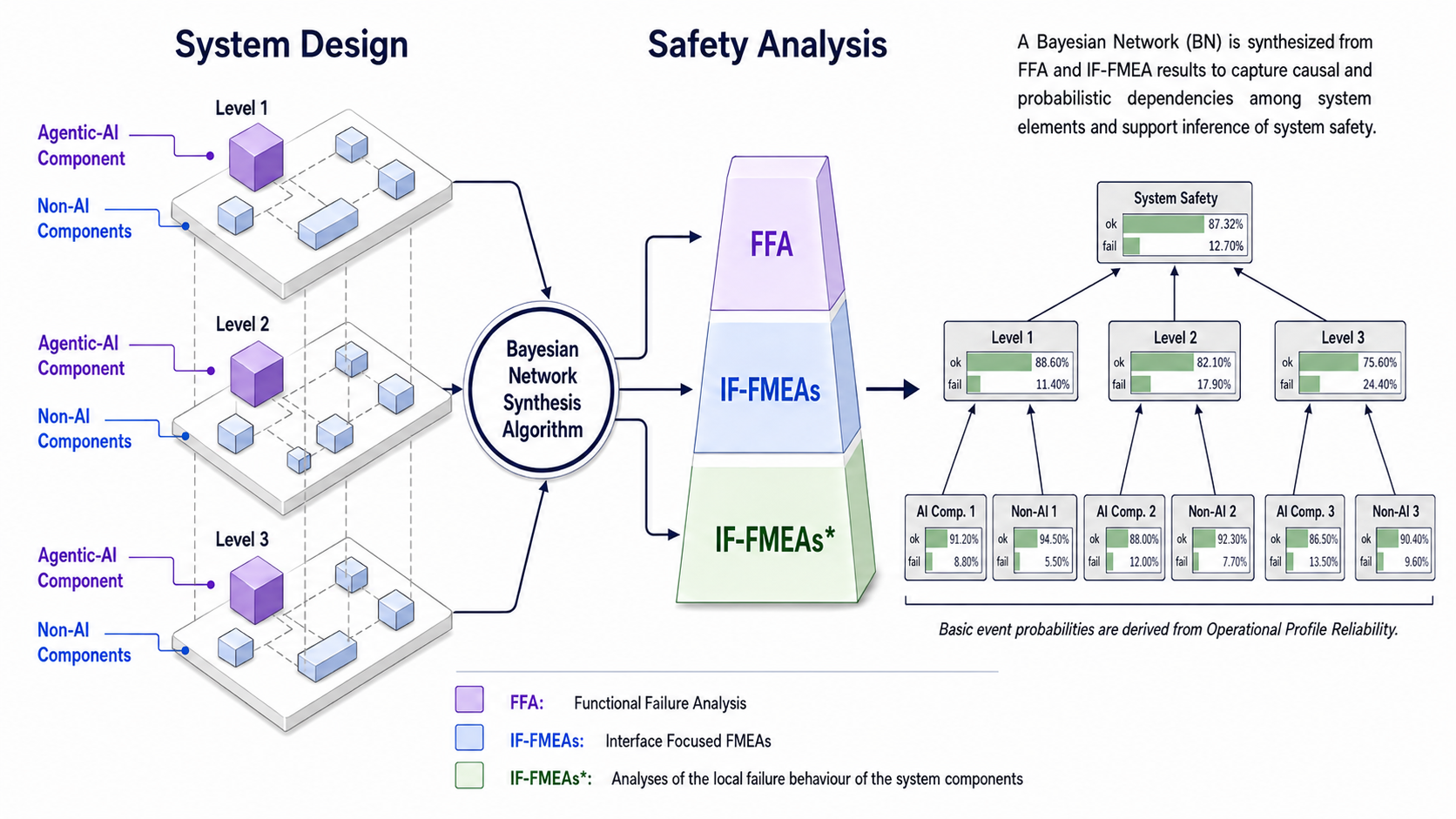

The main idea: system architecture and failure analysis provide the structure; operational-profile reliability provides the evidence for Bayesian inference. FFA denotes Functional Failure Analysis; IF-FMEAs denotes Interface Focused FMEAs; IF-FMEAs* denotes local component failure behaviour. The percentages in this conceptual illustration are illustrative, not results produced by the package. Select the diagram to view it at full size.¶

Two methods, joined at the leaves¶

HiP-HOPS — Hierarchically Performed Hazard Origin and Propagation Studies — gives compositional structure: annotate each component with local failure logic, then synthesise system-level fault trees, minimal cut sets and an FMEA by traversing the architecture. Its basic-event probabilities arrive as engineering judgement.

HIP-LLM — Aghazadeh-Chakherlou et al., RESS 272 (2026) 112615 — gives the numbers: a hierarchical imprecise-Bayesian posterior for the probability that a language model fails on the next item drawn from an explicit operational profile. It returns an interval, because a few hundred benchmark items do not identify a point. But it describes one model, not a workflow.

This package runs the second per component and writes its intervals onto the first’s leaves.

LangGraph app ──▶ architecture ──▶ fault trees ──▶ cut sets, FMEA
                                        ▲                │
 outcomes + operational profile ────────┘                ▼
        (HIP-LLM imprecise posterior)              CPTs ──▶ Bayesian network
                                                              exact P, diagnosis, plot

Try the complete workflow¶

Start with a bundled agent architecture and observed outcomes. Run the analysis, inspect the summary, and display the Bayesian network for a hazard:

from hiphopsllm import AgenticReliabilityStudy, load_example, load_outcomes

study = AgenticReliabilityStudy(load_example("parallel_aggregator"))
study.observe(load_outcomes(), profile={"short": 0.3, "medium": 0.5, "long": 0.2})
study.run()
print(study.summary())
study.bayesnet("H2").show()

See the quickstart for a walkthrough, or follow the installation guide to set up the package.

Where to start¶

If you are…	Go to
New here	Quickstart — the whole pipeline in ten minutes, no LangGraph or GPU required.
After the ideas first	Concepts — what HiP-HOPS does for agent graphs, why the probabilities are intervals, and why a fault tree is a Bayesian network.
Learning by doing	Tutorials — eight worked examples, each one runnable.
Looking something up	API reference — every public class and function.
Going to change the code	Development — the codebase map, the extension points, and the tests you must not weaken.

References¶

Aghazadeh-Chakherlou, R., Guo, Q., Khastgir, S., Popov, P., Zhang, X., & Zhao, X. (2026). A hierarchical imprecise probability approach to reliability assessment of large language models. Reliability Engineering & System Safety, 272, 112615. https://doi.org/10.1016/j.ress.2026.112615
Custers, B., & Aslansefat, K. (2026). Runtime uncertainty monitoring for LLM-based multi-agent systems using Bayesian networks. In Computer Safety, Reliability, and Security: SAFECOMP 2026 Workshops, 9th International Workshop on Artificial Intelligence Safety Engineering (WAISE 2026), Valencia, Spain. Springer. (in press)
Donaldson, L., Walker, C., Aslansefat, K., & Papadopoulos, Y. (2026). Bayesian uncertainty propagation for agentic RAG pipelines: A proof-of-concept study on multi-hop question answering. In Proceedings of the 7th International Conference on Maintenance and Intelligent Asset Management (ICMIAM 2026), Huddersfield, UK, 1-3 September 2026. Springer Nature.
Papadopoulos, Y., & McDermid, J. A. (1999). Hierarchically performed hazard origin and propagation studies. In Computer Safety, Reliability and Security (SAFECOMP 1999) (Lecture Notes in Computer Science, Vol. 1698, pp. 139-152). Springer. https://doi.org/10.1007/3-540-48249-0_13

Licence and citation¶

MIT. If you use this package please cite both the HIP-LLM paper and this repository — see CITATION.cff in the repository root.
